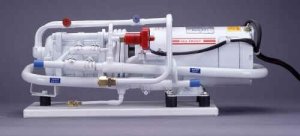

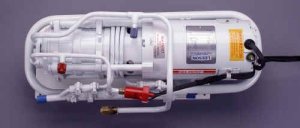

DC 5000
12 & 24 Volt Refrigeration Systems
The Sea Frost DC 5000 is designed to refrigerate boats equipped with large battery banks and alternative energy systems for battery charging. The DC 5000 will freeze holdover plates rapidly and maintain thermostatically controlled temperatures by operating on demand from battery power. It may be combined in a plate system with our popular Engine Drive or air cooled Shore Assist to provide redundancy and versatility. The DC 5000 utilizes a remotely mounted water pump.
- Directly Coupled Compressor
- Compact, Low Profile Design
- Lightweight (48 lbs.: 22 kg)
- Eliminates Belt Friction and Noise
- Quieter than Any Belt Drive System
- No Side Loading of Shaft Seal, Preventing Refrigerant Loss
- Water Jacketed Housing Removes Motor and Compressor Heat
- Coaxial Copper/nickel Condenser for Maximum Efficiency
DC 5000 Specifications
- 1/2 HP Leeson permanent magnet motor
- Amp draw at 12 volts DC: 41 amp. hours (492 watts) (with March 809 BR-12 pump and solenoid)
- Utilizes refrigerant R-134a
- Remote junction box for wiring
- Service access from one side
- Manual reset pump and compressor protector
- Compressor unit weight: 48 lbs. (22 kg)
- Silver brazed construction
- High density polyethylene base
- Swagelok® fittings
- 12 or 24 volt systems available
